  • An ODS module, for data processing and videoanalysis
  • A LAN switch, for system communication
  • Two IP cameras, for data collecting and video transmission
  • Two motion detectors, for detecting potential intrusions
  • An alarm headunit, for triggering the alarm
  • An alarm horn, for alarm notification
  • With the cloud, you can show the status from everywhere!

ODS analog inputs and outputs allow to integrate ODS Lite with the most common alarm systems and sensors.

ODS Lite is able to detect a "dangerous" object, doing a match with traditional alarm detectors, so to increase system performances and avoid the false positives.
If ODS cannot correctly perform the videoanalysis (e.g.: tampered or broken camera, no power supply) the input contact will be directly connected to its outputs, bypassing ODS Lite.

Alarms integration

ODS Lite is able to detect persons, cars, trucks based on your needs. The choice of the "dangerous" object and its threshold are given to the user.
ODS Lite allows to exclude the videoanalysis in some areas of a camera shot, in order to limit the area you want to survey.

The system uses a powerful algorithm that allows to detect the kind of object inside recorded scene.
PaserAI ODS systems are able to perform a real-time videoanalysis for detecting objects and persons in 20 meters.

ODS Lite can detect all the cameras tampering.
When it happens, ODS will consider the camera as not reliable and it will send a warning notification, attaching the recording of the event.

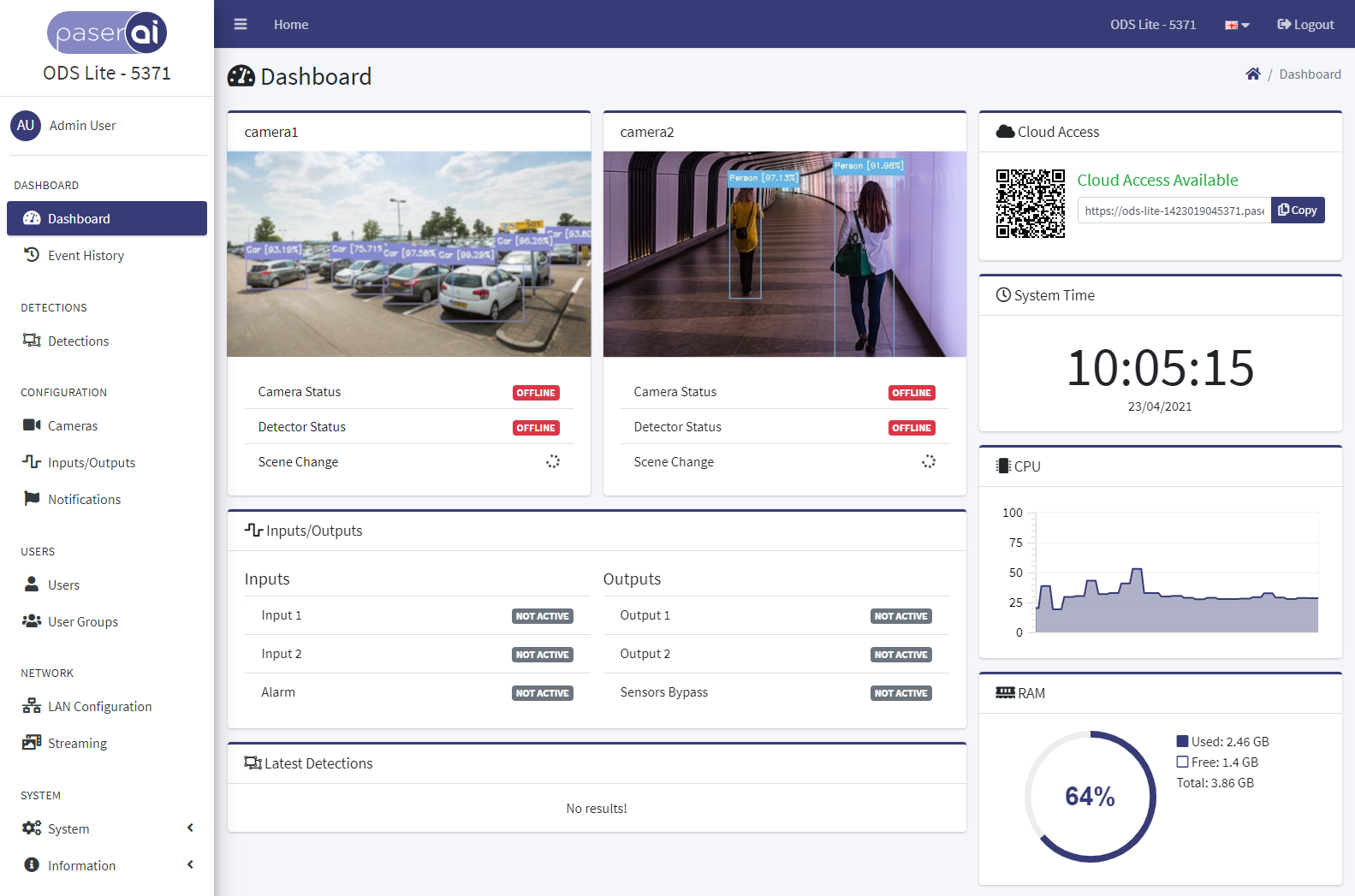

User-friendly control panel

ODS Lite control panel is easy and user-friendly. It allows to completely set up the device without qualified support!

Video recording

ODS Lite can record short videos about the videoanalysis, in order to keep a log of the detections.
Thanks to its 256GB hard disk, it can store thousands of detections, that can be easily shown through web page on your Smartphone and other devices!

Using the Internet connection, ODS Lite is able to send email notifications, also the detection snapshots.

Event notification

Thanks to the Paser dedicated Cloud you can log into your own ODS Lite without any specific network configuration.

Thanks to the Nvidia GPU, ODS Lite is able to create a fast high-performance neural network, excellent for processing the video streams received from the cameras and for recognizing the objects in the recorded scene.

ONVIF Cameras

ODS Lite is compatible with all ONVIF cameras using H.264 / H.265 video encoding.

ODS Lite can be supplied through the LAN port using a PoE+ switch or injector, in order to avoid cabling an area.
ODS Lite consumption is only of 20W!

PoE supply

Technical specifications

Videoanalysis

Supported cameras
2
Supported cameras type
ONVIF
Input video format
Up to 4096×2160 30fps H264/H265
Output video format
Up to 1920x1080 20fps H264
Objects Detected
Person, Car, Truck

Multimedia server

RTSP
Yes
RTMP
Yes
HTTP HLS
Yes
HTTP FLV
Yes

Analog input / output (Alarm)

Sensor inputs
2
Supported Input modalities
Normally open
Normally close
Balanced
Alarm status input
Yes
Sensor outputs
2
ODS system status output
Yes

Recording

Recording in case of detection
Yes
H24 Recording
No
Recording in case of camera tampering
Yes

Hardware

GPU
128-core Maxwell
CPU
Quad-core ARM A57 @ 1.43 GHz
Memory
4 GB 64-bit LPDDR4 25.6 GB/s
Storage
256GB NVME
Connection
Gigabit Ethernet
Power supply
PoE 802.3at (30W)
Power consumption
Max 20W
Cooling
Active

Weight and size

Size
210x120x69mm
Weight
1Kg
